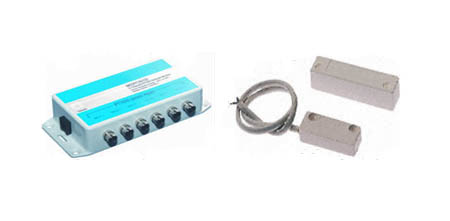

6 Channel Pt1000 Network Monitor & Door Switch
The 6 Channel Pt1000 Network Monitor allows an additional 6 Pt1000 temperature sensors to be monitored via the DATAcentre 485 network connection. Each input can measure temperature in the range of -200°C to 40°C. Sensors are connected via one of the six phono connectors. The unit is supplied with a 1m patch cable to connect it to the DATAcentre. Pt1000 sensors are sold separately.
Door Switch - Cable type or terminal type flush mount switches. Cable type comes fitted with 300mm long cable. Proximity switches primarily designed for discrete protection of doors and windows. The switches are of moulded construction incorporating a N/O SPST magnetically operated reed switch. The permanent actuating magnet is also of moulded construction to facilitate easy fixing. All switches have a separate tamper loop or terminals for maximum security. Set includes magnet and proximity switch. To be used with a digital transmitter.
