Products Cryo Freezers Small CRF IBF-100 - Veterinary Freezer

IBF-100

IBF-100

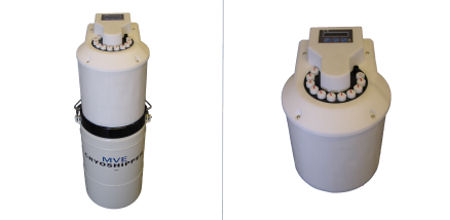

A lightweight, portable controlled rate freezer; battery powered and ideal for vets – IBF 100

Designed mainly for the vet and zoological market the unit is good for any situation where mobility is needed.





A 12 volt battery or mains powered chamber is mounted on a standard vapour shipper.

This is a highly accurate portable controlled rate freezer which uses a charged vapour shipper as a 'cold sink'.

It has a unique “dry” system - no liquid nitrogen.  A Primary fan keeps the chamber at a uniform temperature and the Secondary fan draws cold air in from the dry shipper.The technology makes for excellent programmed control and also makes it almost totally silent.

  • Benefits
  • Features
  • Background
  • Related Products
  • Downloads
  • Portable and silent
  • No separate liquid nitrogen source needed when out in the field
  • Takes Straws and Ampoules
  • Integrated storage facility via the vapour shipper
  • Economical
  • Easy access to samples
  • Multi controlled rate freezing program
  • Easy Data retrieval for record keeping
  • Cooling rates from 0.1°C per minute to -10°C per minute
  • Unit programmable to 10 program locations
  • Range +30°C to -100°C (-80°C programmable end temperature)
  • Chamber holds 0.25ml, 0.5ml straws
  • Chamber holds1.2ml and 2.0ml ampoules
  • Data recording via internal memory : 4 last runs
  • Output to Planer's DeltaT management software
  • Heating rate 5°C/min if powered from 18 V DC supply (2°C/min if low power option used)

Key areas of use:

  • Semen freezing
  • Animal husbandry
  • Embryology
  • Frozen Ark
  • Cryopreservation
  • Ex-situ conservation
  • Gene pool preservation
  • Endangered species



Case Study - Benefits of Controlled Rate Freezing (Adobe Acrobat PDF, 168KB)

Background to CRF - Controlled Rate Freezing (Adobe Acrobat PDF, 76KB)

Equine Semen Freezing Case Study (Adobe Acrobat PDF, 67KB)

See: Chapter 10: Cryobiological Material and Handling Procedures,  “Methods in Reproductive Aquaculture” Taylor and Francis

http://www.taylorandfrancis.com/books/details/9780849380532/#contents

Vapour Shippers employ a hydro-phobic absorbent material that contains the liquid nitrogen for “spill free” shipping of samples at ultra-cold temperatures. The absorbent material repels moisture and humidity so also there should be no need to 'dry out'units between uses. See more on 'dry' or 'vapour' shippers

The Planer ShipsLog™ is a data logger for vapour shippers which will keep an accurate and down-loadable temperature history of samples over the duration of a transit. See more on the Ships Log

See other models in our controlled rate freezer range:

Kryo 360 - A medium capacity controlled rate freezer: ideal for an IVF, ART or research laboratories

IBF 100 - A lightweight, portable controlled rate freezer; battery powered and ideal for vets

Kryo 550 - A medium sized controlled rate freezer with sample capacity sufficient for a busy laboratory

Kryo 560 - A medium sized controlled rate freezer with sample capacity sufficient for a busy laboratory

Kryo 750 - An integrated controlled rate freezer for cryopreservation of larger volume samples or samples in larger numbers

Kryo 1060 - A large capacity controlled rate freezer for higher volume storage

Download the IBF-100 data sheet (Adobe Acrobat PDF)

DeltaT Software for IBF-100

Download the IBF-100 Manual

Download all related freezer pictures here
