Products Cryo Freezers Medium CRF Kryo 560 - Stem Cells and Blood Freezer

Kryo 560

Kryo 560

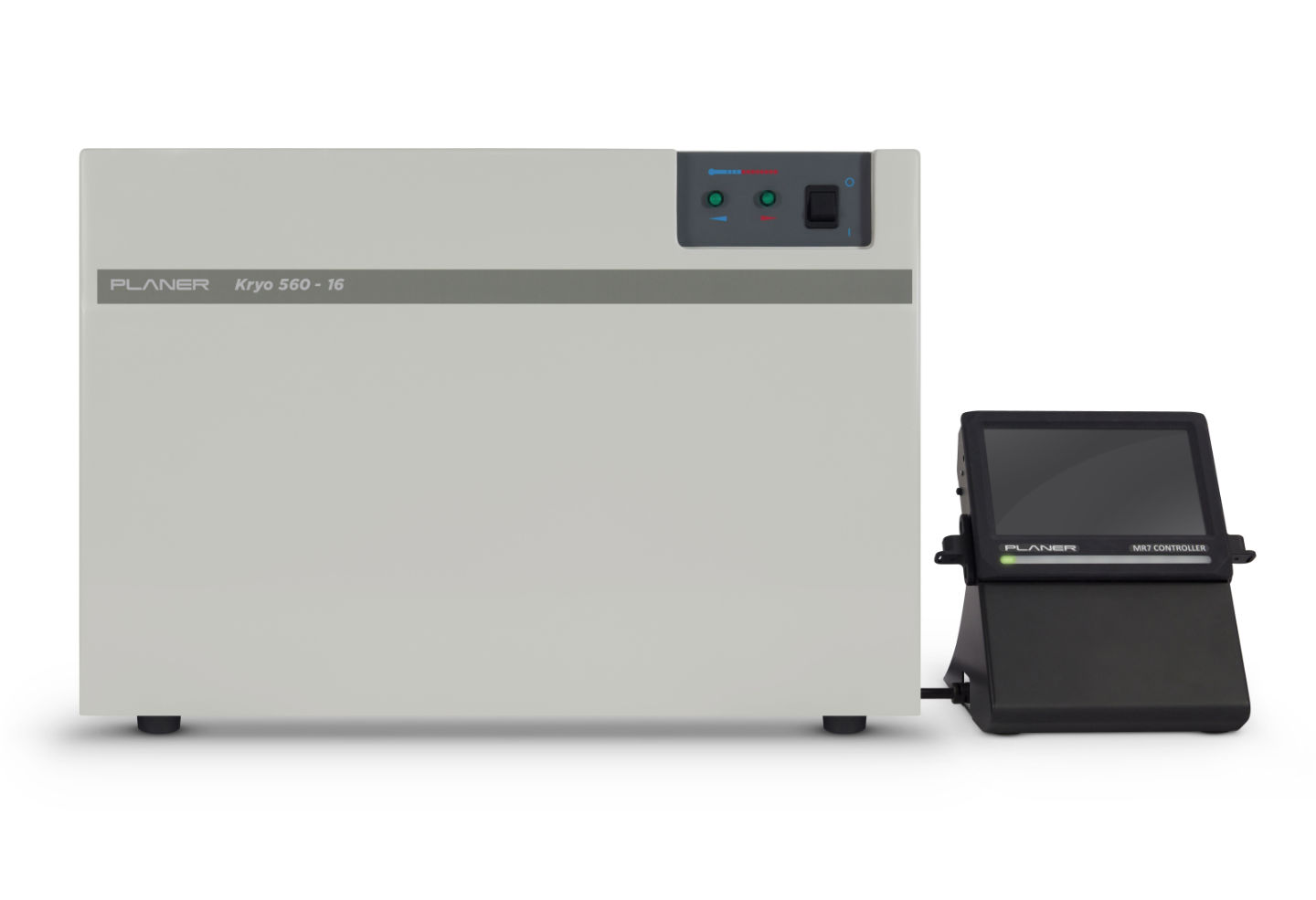

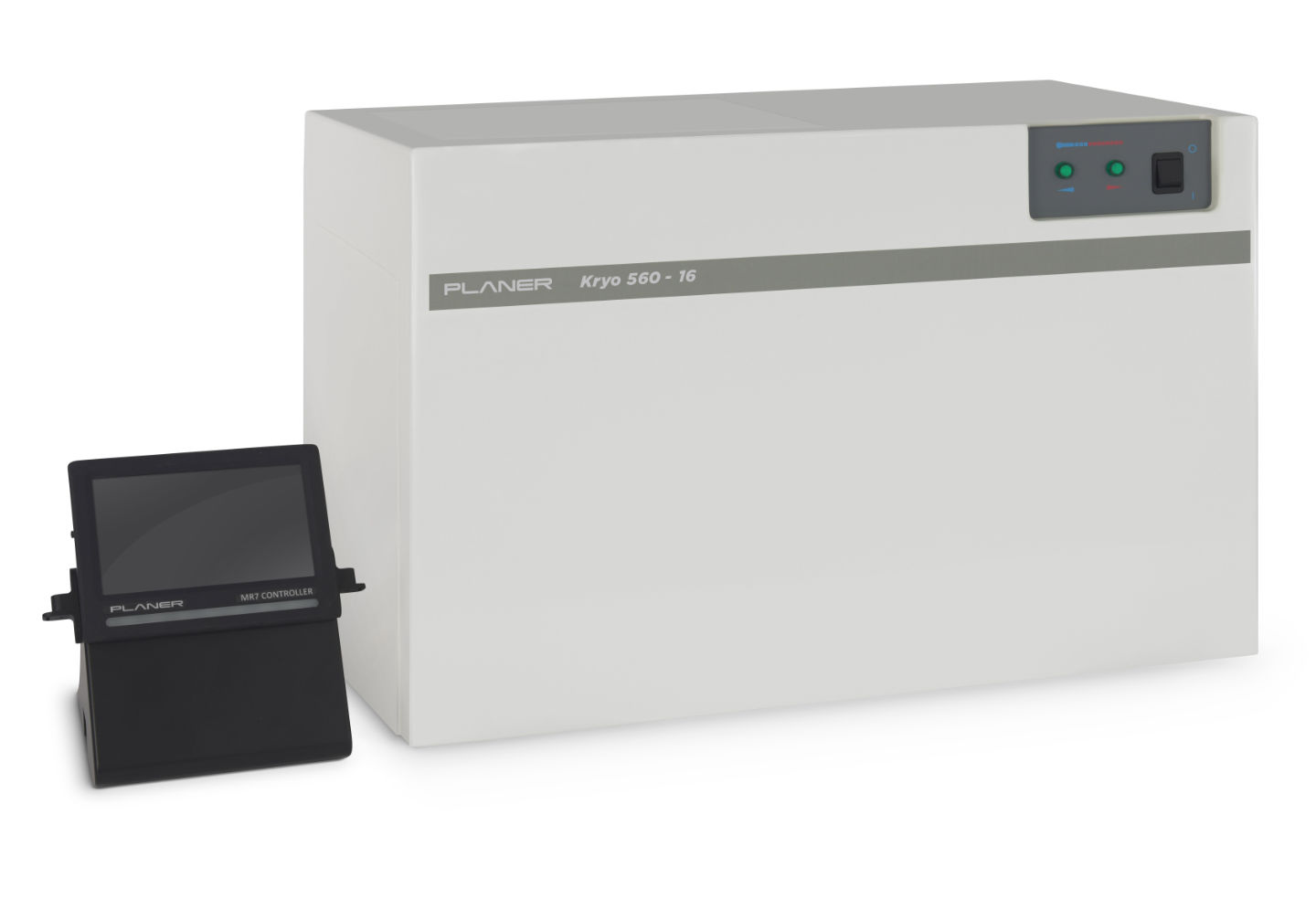

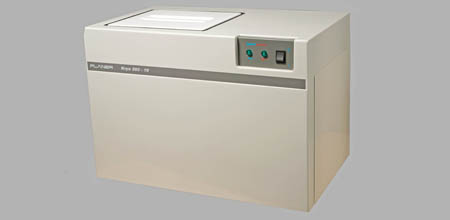

A medium sized controlled rate freezer with sample capacity sufficient for a busy laboratory -  Kryo 560-16

Simple to programme and easy to operate.

This rugged and reliable controlled rate freezer has  a top opening chamber,  a lid that is warmed to prevent freezing shut at cryogenic temperatures plus the unique forced laminar flow pattern ensuring excellent temperature control in all phases of the protocol. Planer’s  MRV Controller system offers multiple protocol availability.

The -180ºC end temperature ensures sample integrity during transfer to storage at  liquid nitrogen temperatures whilst the flexibility of the system, including protocol stage transition based on sample or chamber temperature or time, is ideal for the more demanding protocols associated with advanced cryo-preservation techniques.

The equipment is also available in a Medical Device version.

  • Benefits
  • Features
  • Background
  • Related Products
  • Downloads
  • Freezes samples in bags, ampoules and straws
  • Validation offered via Controller password controlled access on multiple user levels
  • Menu driven controller, simple to operate
  • Displays demand, sample and chamber temperatures
  • Displays alphanumerically and graphically via an easy view display
  • Trigger on sample, time or temperature
  • Top opening chamber; lid is kept warm to prevent freezing shut at cryogenic temperatures
  • Run print out via integral full view printer
  • Time and date stamping, programme preview/verification before running



  • Chamber volume: 16 litres
  • Capacity: 11 x 250/500ml bags, horizontally or vertically in chamber
  • 48 x 25ml PALL bags
  • Ampoule capacity: 726 x 2ml in baskets
  • Straw capacity: 608 x 2ml on canes (horizontal)
  • Lower temperature limit: -180ºC
  • Cooling rates: -0.01 to -50ºC/Min
  • Controlled heating rates:0.01 to 10ºC/Min
  • Controlled heating; start above ambient
  • Data Printing (integral printer); Comms port for PC connection
  • System controller: Planer's MRV
  • System Pump: Planer's LNP4
  • System Dewar: Chart LAB 30

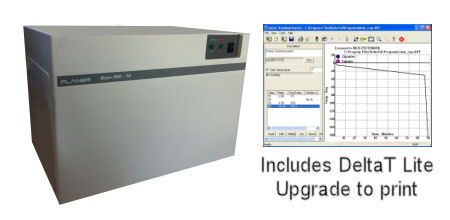

  • PC Software: Includes Planer's Delta T™ Lite (Upgradable to Planer's DeltaT or DeltaT-iQ)



This range of controlled rate freezers is used in areas such as :

  • Biobanks
  • Cell based research
  • Biotech areas
  • Human and animal IVF
  • Blood and Tissue Banks
  • Biorepositories
  • Regenerative medicine



Case Study - Benefits of Controlled Rate Freezing (Adobe Acrobat PDF, 168KB)

Background to CRF - Controlled Rate Freezing (Adobe Acrobat PDF, 76KB)

See other models in our controlled rate freezer range:

Kryo 360 - A medium capacity controlled rate freezer: ideal for an IVF, ART or research laboratories

IBF 100 - A lightweight, portable controlled rate freezer; battery powered and ideal for vets

Kryo 550 - A medium sized controlled rate freezer with sample capacity sufficient for a busy laboratory

Kryo 560 - A medium sized controlled rate freezer with sample capacity sufficient for a busy laboratory

Kryo 750 - An integrated controlled rate freezer for cryopreservation of larger volume samples or samples in larger numbers

Kryo 1060 - A large capacity controlled rate freezer for higher volume storage

Download the Kryo 560 data sheet

DeltaT Software for Kryo 560

Download the Kryo 560 Manual

Download all related freezer pictures here
